Quick Details

  • Condition: New
  • Flow: 1800L/H to 18000L/H
  • Working Pressure: Less than 0.35Mpa
  • Place of Origin: Chongqing, China (Mainland)
  • Brand Name: Yuneng
  • Model Number: ZJA Series
  • Usage: Transformer Oil
  • Voltage: 380V
  • Power(W): as per capacity
  • Dimension(L*W*H): as per capacity
  • Weight: as per capacity
  • Certification: CE&ISO Standard
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Type: Double Stage Vacuum Transformer Oil Purification Machine
  • Function: Transformer / Insulation Oil Purifier
  • Structure: Vacuum Filter
  • Pressure: High Pressure
  • Color: as needed
  • Warranty: 1 Year
  • Pachage Type: Iron Sheet Case

Packaging & Delivery

Packaging Details Iron case/Double Stage Vacuum Transformer Oil Purification Machine
Delivery Time within 30 to 45 days/Oil purification machine

Double Stage Vacuum  Transformer Oil Purification Machin





Application



Double Stage Vacuum  Transformer Oil Purification Machine   is mainly used to improve the properties of insulation oil. It can remove trace water, gas, particulate matters etc. from the insulating oil effectively and rapidly so as to boost performance of transformers, circuit breakers, mutual inductors, cable and capacitors which has insulation system.ZJA series specialize in purifying branded oil, insulating oil of high voltage and super high voltage transformer. Additionally, it is suitable for treating low viscosity lubrication oil. Dissolved gasses in transformer oil can cause arcing, corona discharges, and overheating--reducing the electrical efficiency.



Why purify transformer oil?
Dissolved gasses in transformer oil can cause arcing, corona discharges, and overheating--reducing the electrical efficiency and lifetime of the transformer. Likewise, water contamination at levels as low as 30 ppm (parts per million) can adversely affect the insulating strength of the oil. With ever-increasing standards for energy efficiency of power distribution transformers, the need to effectively degas will become even more important in the future. particles contamination will also affect the function of insulating oil. So we need to clean used transformer oil.



 Technical Data of  Double Stage Vacuum Transformer Oil Purification Machine



Item

Parameter

   Type

Unit

ZJA1.8KY

ZJA3KY

ZJA6KY

ZJA9KY

ZJA12KY

ZJA18KY

Technical parameter

Flow Rate

L/H

1800

3000

6000

9000

12000

18000

Working Vacuity

Pa

≤80

Working pressure

Mpa

≤0.35

Temperature Range



45-65

Power Supply



50Hz    380V    3-Phase 4-Wire

Total Power

KW

18+2.25

30+6

2X30+6.6

3X30+8.2

4X30+10

5X30+16.5

Inlet/Outlet Diameter

mm

32 / 25

38 / 32

44 / 38

48 / 44

64 / 48

76 / 64

Size

Length

mm

1200

1500

1870

1930

2160

2250

Width

mm

950

1150

1250

1400

1600

1750

Height

mm

1600

2000

2200

2460

2650

2650

Weight

Kg

650

900

1200

1600

2200

3000

Oil treatment index

Breakdown Voltage

KV

70-75

Water Content

ppm

3~5

Gas Content

%

≤0.2

Filtration accuracy

µm

≤1~3

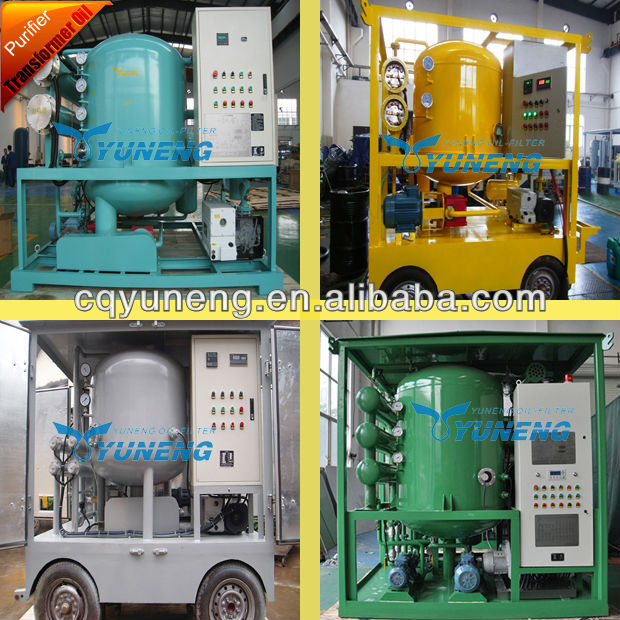

Photos of   Double Stage Vacuum Transformer Oil Purification Machine


Factory View



 Project Cases



Exhibitions



 Packing & Delivery



Part 8 After -sales Service



One year guarantee for product quality. (except man-made damage).
Free training , installation and testing are available.

Lifelong maintenance Service



Part 9 FAQ



1. Annual production capacity

     1200 sets



2. Does the company provide the ODM service for others?

    Yes



3. How many years does the company supply the oil purifier ?



Founded in 1997, we have been supplying the oil purifier for nearly 20 years. Today YUNENG stands in the same line with PALL, SANMI and KATO in competition.
