Quick Details

  • Condition: New
  • Flow: 30~200L/min Transformer Oil Purification Equipment
  • Working Pressure: <0.4MPa
  • Place of Origin: Chongqing, China (Mainland)
  • Brand Name: Yuneng, Yuneng
  • Model Number: ZJA Series Transformer Oil Purification Equipment
  • Usage: Transformer Oil
  • Voltage: 380V or as per user's option
  • Power(W): 12-24KW
  • Dimension(L*W*H): As per treating capacity
  • Weight: As per treating capacity
  • Certification: ISO CE BV
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Function: Transformer Oil Purification Equipment
  • Structure Material: Carbon steel
  • Vacuum pumps: 2 stage rotary vacuum pump+booster roots
  • Oil pump: Centrifugal oil pump, better than gear pump
  • Type: Transformer Oil Purification Equipment
  • Electric Wiring: IEC
  • Condenser: Each for the vacuum pump and roots pump
  • Raw material: transformer oil, insulation oil, Dielectric oil,
  • Oil Filter: Up to 0.5Micron

Packaging & Delivery

Packaging Details Iron case or as requested for Transformer Oil Purification Equipment
Delivery Time 20 days after payment for Transformer Oil Filtration Machine

Vacuum Transformer Oil Purification Equipment Transformer Oil Purifier Name Machine



Product Description

Vacuum Transformer Oil Purification Equipment Transformer Oil Purifier Name Machine

Product Introduction



1.Over 20 years manufacturer directly sale

2. Used in the electric power system (66kV~500KV).

3. Features include high working vacuum, fast oil filtering and sound oil protection.



4. Suitable for oil treatment, vacuum oil injection and cyclic hot oil drying in the installation and maintenance of large capacity transformers.



Our Vacuum Transformer Oil Purification Equipment Transformer Oil Purifier Name Machine is designed to remove contaminants (particulate, water, gasses, acids, etc.) in the transformer oil effectively and rapidly, so as to boost performance of transformers, circuit breakers, mutual inductors, cable and capacitors which has insulation system.





Transformer oil maintenance is the key to transformer reliability, performance and longevity. Your transformer’s insulating oil should be free from moisture, dissolvedgases and particles that accumulate as the oil ages. Evensome new oils may require treatmentto limit these contents to acceptable levels.



We are a designing, engineering and manufacturing company capable of application customization for best solutions.



Vacuum Transformer Oil Purification Equipment Transformer Oil Purifier Name Machine

PERFORMANCE:



Water Removal: Overall Water Content ≤5 PPM by removing free, emulsified, and dissolved water.



Particulate Removal: Particle counts as low as 1 micron.



Entrained Air and Gas Removal ≤ 0.3%



Acid Removal: can be equipped with fullers earth towers to neutralize acid and Lower TAN to < 0.03 KOH/g



Dielectric Strength :≥70 kV per ASTM 877





Vacuum Transformer Oil Purification Equipment Transformer Oil Purifier Name Machine

Technical Specification

Item

 Parameter

   Type

Unit

ZJA1.8KY

ZJA3KY

ZJA6KY

ZJA9KY

ZJA12KY

ZJA18KY

Technical Parameter

Flow Rate

L/H

1800

3000

6000

9000

12000

18000

Working Vacuity

Pa

≤80

Working Pressure

Mpa

≤0.35

Temperature Range

oC

45-65

Power Supply



50Hz    380V    3-Phase 4-Wire  (or as requested)

Total Power

KW

18+2.25

30+6

2X30+6.6

3X30+8.2

4X30+10

5X30+16.5

Inlet/Outlet Diameter

mm

32 / 25

38 / 32

44 / 38

48 / 44

64 / 48

76 / 64



Size

Length

mm

1200

1500

1870

1930

2160

2250

Width

mm

950

1150

1250

1400

1600

1750

Height

mm

1600

2000

2200

2460

2650

2650

Weight

Kg

650

900

1200

1600

2200

3000

Oil Treatment Index

Breakdown Voltage

KV

70-75

Water Content

ppm

3~5

Gas Content

%

≤0.2

Filtering Accuracy

µm

1~3



Vacuum Transformer Oil Purification Equipment Transformer Oil Purifier Name Machine

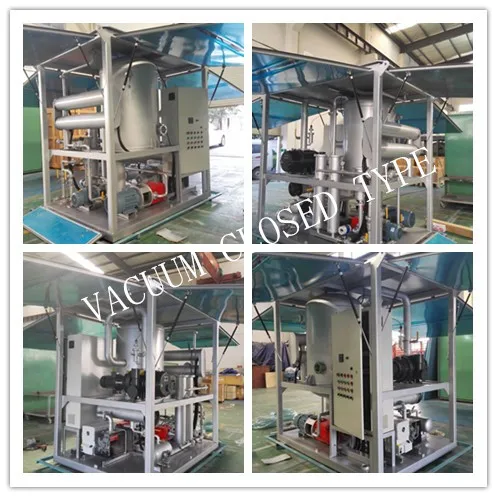

Machine Photos




Packaging & Shipping

Vacuum Transformer Oil Purification Equipment Transformer Oil Purifier Name Machine

Package Photos



Company Information







Founded in 1995, has good cooperation with TBEA transformer, Wilson Transformer in Australia, nearly 200 employees, 4 production line, 24 engineers in R&D, 12 engineers in after-sales and 5 QC can make sure high quality product and high production capacity.



After-Sales Service

One year guarantee for product quality. (People damaged parts are charged).
Lifelong maintenance and spare parts supply.
Free design of fixtures as customers required.
Free training for machines installation and operation of the staffs.

Customized solutions

At YUNENG we don't just sell what we have in stock; we create solutions to meet our customers' technical, financial and scheduling needs.



Call or email us will find the best fit for you.

Consumable Material & After-sales Service

We take full advantage of our years of experience (since 1997) in oil filtration filed to supply reliable machine. Special engineered design features, top-quality components and workmanship ensure years of maintenance-free operation and performance.


Usually the only consumable material of the machine is the filter elements. All other parts or elements seldom have problem because of high and stable quality.


We will send engineers to your city for after sales service within 2 weeks after machine arrived at your site.


If any problem, we will supply replacing parts or send engineer to your site (free within warranty period, charge reasonably beyond warranty period).



Contact us for more information as (pumps, heater, filter elements, PLC, flow meter, digital vacuum gauge, VFD….)

Available option:

3 stages-vacuum pumps are available if higher requirement.



Inline Digital Particle Monitor



Inline Digital Moisture Indicator



FAQ



Yuneng products list:



1. Insulation Oil filtration machine:

ZJA Ultra-high Vacuum Transformer Oil Filtration Machine

 (1000KV, ±800KV, 750KV, ±660KV project) (2 stage vacuum)



ZJA  Vacuum Transformer Oil Filtration Machine

 (110KV-500KV project)) (2 stage vacuum)



ZJB Vacuum Transformer Oil Filtration Machine
  (≤110KV) (one stage vacuum)



ZJ Vacuum Pumping machine (extract vacuum, dry transformer)



GF Dry Air Generator (produce dry air for operators to maintain transformer, reactors…).



JZ OLTC (on-load tap changer) online Oil filtration machine



Quantitative oil injection machine (customized product)



2. Turbine Oil filtration machine:

JT coalescing dehydration oil filtration machine (dehydration by special filters)



DYJC online turbine oil filtration machine (dehydration by special filters and vacuum system)



ZJC-T vacuum oil filtration machine for turbine oil (dehydration by vacuum system)



3. Lubricating Oil filtration machine:

ZJC-R vacuum Oil filtration machine for lubricating oil (machinery oil, hydraulic oil, compressor oil, coolant oil, cutting oil..)



ZJC-M Oil filtration machine for OCS. (oil with high viscosity 100-320cst at 40℃)



4. Other kinds of oil filtration machine:

KYJ fire-resistance oil filtration machine (EHC oil)



LY plate-frame pressure oil filtration machine (simple, paper filtration)



YL mobile oil filtration machine (simple, cheap)



5. Waste oil regeneration machine (by chemicals or by high temperature distillation)

YNZSY used oil filtration machine (by chemicals)



YNZSY-LTY used tire oil filtration machine (by chemicals)



Waste oil distillation machine



6. Oil tester/ analyzer:

Dielectric oil breakdown strength tester



Water content tester



Inline Digital Flow Meter and Totalizer



Viscosity analyzer



Flash point analyzer (close cup)



Flash point analyzer (open cup)



Interfacial tension analyzer



Gas chromatograph
