Quick Details

  • Place of Origin: Chongqing, China (Mainland)
  • Brand Name: YUNENG
  • Model Number: ZJ-600
  • Theory: Vacuum Pump
  • Structure: Multistage Pump
  • Usage: Transformer Evacuation Machine
  • Power: Electric
  • Standard or Nonstandard: Standard
  • Fuel: contact us
  • Pressure: contact us
  • Application: contact us
  • Function: Vacuumize
  • Type: with waterproof and door
  • Structure Material: Carbon steel
  • Vacuum pumps: 2 stage rotary vacuum pump+booster roots pump
  • Oil pump: Centrifugal oil pump, better than gear pump
  • Electric wiring: IEC standard
  • Limited vacuum: 3Pa
  • Pumping Level: 2
  • Connection Diameter: 25~80
  • After-sales Service Provided: Engineers available to service machinery overseas

Packaging & Delivery

Packaging Details iron case or as needed
Delivery Time within 15 w-days

Two Stage Portable Transformer Evacuation Machine

Two Stage Portable Transformer Evacuation Machine  is mainly used for vacuum drying and vacuum oil-injecting for high voltage electrical transformer as 220KV, 500KV,±800KV, 1000KV. Strong vacuum pumps make working vacuum degree to 10 Pa and limit vacuum degree to 1 Pa.



Two Stage Portable Transformer Evacuation Machine  Features:



GIS connection available



Digital vacuum degree management



Anti-absorption



Machine can start fast



Strong vacuum pumping capacity



Stable performance



Easy operation



There is a combination of axial fan and condenser to deal moisture and gas from vacuum pump and roots pump, it can prolong time to change vacuum oil while meet emission standard.



Two Stage Portable Transformer Evacuation Machine  Parameters:



Parameter

  Unit

ZJ-70

ZJ-150

ZJ-300

ZJ-600

ZJ-1200

Power Supply



50Hz    380V    3-Phase 4-Wire  (or as requested)

Power

KW

4

6.5

7

11

18.5

Limit Vacuity

   Pa

≤3

Pumping Speed

L/S

70

150

300

600

1200

Pumping Level



2

Connection Diameter

mm

50

80



Size

Length

mm

1200

1300

1400

1600

1750

Width

mm

950

1000

1100

1200

1300

Height

mm

1500

1600

1700

1900

2100

Weight

Kg

300

400

500

1250

1560



Two Stage Portable Transformer Evacuation Machine  is usually accepted by customers together with with ZJA vacuum oil purifier and GF dry air generator.



Two Stage Portable Transformer Evacuation Machine  Photos for reference:

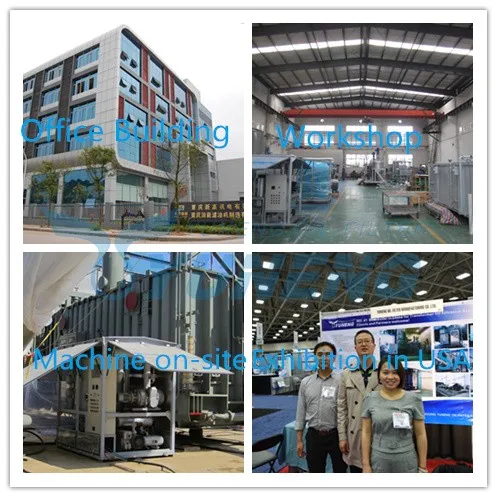

Company Information


We are also the supplier of the Big Transformer Company TBEA in India, hope we could also be your supplier in the near future.


If you are interested in our products, please get back to me for more details.Thank you.




Packaging & Shipping





Our Services



Free design of fixtures as customers required.

On site staff training for installation and operation of the machine is available.

Custom options are always available!
For technical support, custom applications and design versatility, please contact us at your most convenient time.



FAQ

There are three ways for arranging installation.

1). The customers can install the machine by themselves. We'll do the debugging on site before shipment and attach the detailed operation manual with the machine,so normally the installation is done by the customers.

2) You can come to our factory before shipment. On the one side, you can inspect the machine before shipping; On the other side, you can receive a free training course at our factory.

3) If you need us to send our engineer to service oversea, please contact us for more details.

2. Certificates

CE,ISO,SGS

3. Contact information

We supply wide range of oil recycling machines. If you have any requirements about used oil recycling machine, please let me know any time.



Yuneng products list:



1. Insulation Oil filtration machine:

ZJA Ultra-high Transformer oil filtration machine
 (1000KV, ±800KV, 750KV, ±60KV project) (2 stage vacuum)



ZJA High-vacuum Transformer oil filtration machine
 (110KV-500KV project)) (2 stage vacuum)



ZJB Transformer oil filtration machine
 (≤110KV) (one stage vacuum)



ZJ  Vacuum Pumping Unit for large-scale power transformer
 (extract vacuum, dry transformer)



GF Dry Air Generator (produce dry air for operators to maintain transformer, reactors…).



JZ OLTC (on-load tap changer) online Oil filtration machine



Quantitative oil injection machine (customized product)



2. Turbine Oil filtration machine:

JT coalescing dehydration oil filtration machine (dehydration by special filters)



DYJC online turbine oil filtration machine (dehydration by special filters and vacuum system)



ZJC-T vacuum oil filtration machine for turbine oil (dehydration by vacuum system)



3. Lubricating Oil filtration machine:

ZJC-R vacuum Oil filtration machine for lubricating oil (machinery oil, hydraulic oil, compressor oil, coolant oil,  cutting oil..)



ZJC-M Oil filtration machine for OCS. (oil with high viscosity 100-320cst at 40℃)



4. Other kinds of oil filtration machine:

KYJ fire-resistance oil filtration machine (EHC oil)



LY plate-frame pressure oil filtration machine (simple, paper filtration)



YL mobile oil filtration machine (simple, cheap) Vacuum Pumping Machine for Transformer



5. Waste oil regeneration machine (by chemicals or by high temperature distillation)

YNZSY used oil filtration machine (by chemicals)



YNZSY-LTY used tire oil filtration machine (by chemicals)



Waste oil distillation machine



6. Oil tester/ analyzer:

Dielectric oil breakdown strength tester



Water content tester



Inline Digital Flow Meter and Totalizer



Viscosity analyzer



Flash point analyzer (close cup)



Flash point analyzer (open cup)



Interfacial tension analyzer



Gas chromatograph
