Quick Details

  • Condition: New
  • Flow: As per capacity
  • Working Pressure: <0.5Mpa
  • Place of Origin: Chongqing, China (Mainland)
  • Brand Name: Yuneng
  • Model Number: ZJB Series Transformer Oil Filtration Machine
  • Usage: Transformer Oil
  • Voltage: As per buyer's option
  • Power(W): As per capacity
  • Dimension(L*W*H): As per capacity
  • Weight: As per capacity
  • Certification: CE, ISO
  • After-sales Service Provided: Engineers available to service machinery overseas
  • FUNCTION: Transformer Oil Filtration Machine
  • Application: Transformer oil
  • Color: Silver, blue or others
  • Water content: <5ppm
  • Filering accuracy: 1um
  • Type: Vacuum oil purifier for transformer oil
  • Breakdown Voltage: 70~75KV
  • PLC: Optional
  • Ending-product: Clean transformer oil
  • Warranty: 1 Year

Packaging & Delivery

Packaging Details iron case or as required for Transformer Oil Filtration Machine
Delivery Time Shipped in 30 days after payment



ZJB Series Single Stage Transformer Oil Filtration Machine,Transformer Oil Purifier

Exporting Experience of Transformer Oil Filtration Unit :

We have experiences in exporting to Chile , Australia , Peru, Malaysia, India , Egypt,Saudi Arab,Indonesia , Spain, Republic of Lithuania, Albania , Philippines , Dubai , Netherlands Antilles ,Macedonia ,Vietnam , South Korea , Azerbajian, Uzbekistan, Zambia, Pakistan and lebanon and so on, and have a good reputation in oil recycling field.



Application of ZJB Series Single Stage Transformer Oil Filtration Machine,Transformer Oil Purifier

ZJB Series Single Stage Transformer Oil Filtration Machine,Transformer Oil Purifier is mainly used to improve the properties of insulation oil. It can remove trace water, gas, particulate matters etc. from the insulating oil effectively and rapidly so as to boost performance of transformers, circuit breakers, mutual inductors, cable and capacitors which has insulation system.ZJA series specialize in purifying branded oil, insulating oil of high voltage and super high voltage transformer. Additionally, it is suitable for treating low viscosity lubrication oil. Dissolved gasses in transformer oil can cause arcing, corona discharges, and overheating--reducing the electrical efficiency.



Why purify transformer oil?
Dissolved gasses in transformer oil can cause arcing, corona discharges, and overheating--reducing the electrical efficiency and lifetime of the transformer. Likewise, water contamination at levels as low as 30 ppm (parts per million) can adversely affect the insulating strength of the oil. With ever-increasing standards for energy efficiency of power distribution transformers, the need to effectively degas will become even more important in the future. particles contamination will also affect the function of insulating oil. So we need to clean used transformer oil.



Technical Data of  ZJB Series Single Stage Transformer Oil Filtration Machine,Transformer Oil Purifier



Item

Parameter

   Type

Unit

ZJB0.42KY

ZJB0.9KY

ZJB1.8KY

ZJB3KY

ZJB4.8KY

ZJB6KY

ZJB9KY

ZJB12KY

ZJB18KY



Technical Parameter

Flow Rate

L/H

420

900

1800

3000

4800

6000

9000

12000

18000



Limit vacuity

Pa

≤20

Working Vacuity

pa

≤400

Working Pressure

Mpa

≤0.35

Temperature Range



50-65

Power Supply



50Hz    380V    3-Phase 4-Wire  (or as requested)

Total Power

KW

3.6+0.75

9+1.5

12+1.5

30+3

2x24+3.3

2x30+4

3x30+6

4x30+7

5x30+9



Inlet/Outlet Diameter

mm

25/16

32/25

32/25

38/32

38/32

44/38

48/44

64/48

76/64



Outer Size

Length

mm

650

1100

1100

1500

1600

1650

1850

2100

2200



Width

mm

500

850

900

1100

1200

1150

1250

1350

1400



Height

mm

900

1400

1400

1700

2100

2050

2150

2200

2300



Weight

Kg

60

120

200

500

600

800

1000

1500

2500



Oil Treatment Index

Breakdown Voltage

KV

60-65

Water Content

ppm

5-10

Gas Content

%

≤0.25

Filtration Accuracy

µm

≤3

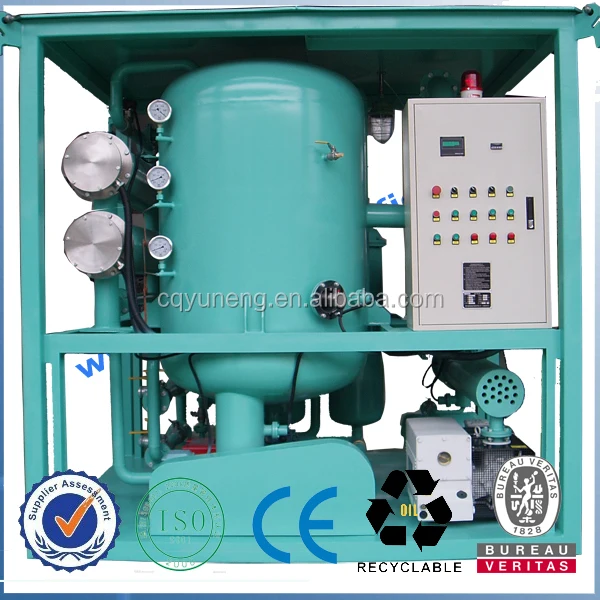

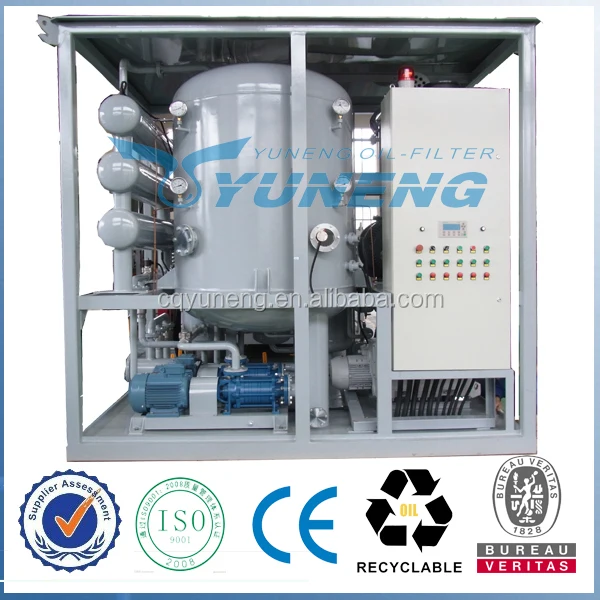

Photos of  ZJB Series Single Stage Transformer Oil Filtration Machine,Transformer Oil Purifier




Factory View

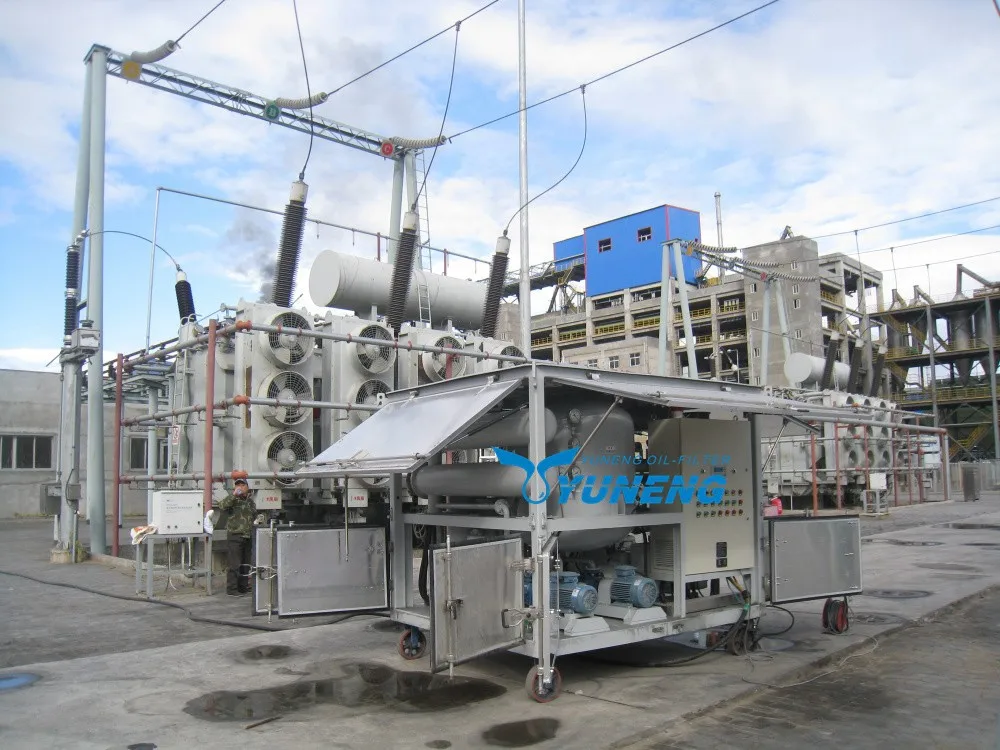

 Project Cases





ZJB Series Single Stage Transformer Oil Filtration Machine,Transformer Oil Purifier  from Chonqqing Yuneng Oil-Filter Manufacturing Co.,LTD
